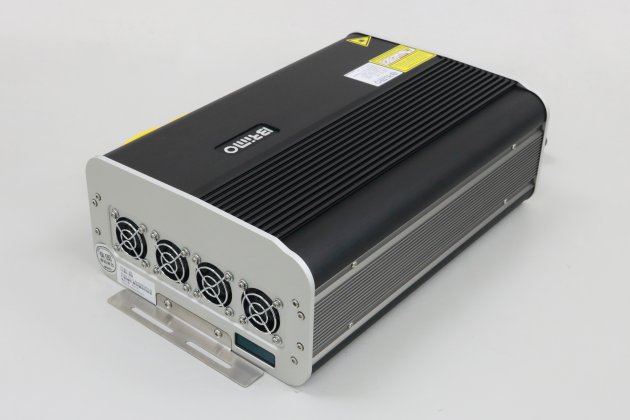

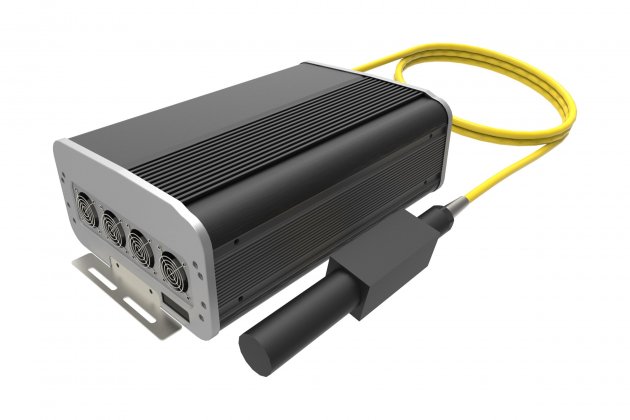

20W R2+ Pulsed Fiber Laser

  • Introduction
  • Specifications
Features and Advantages:
MOPA
Pulse Width Modulation (3 ns- 800 ns)
Wide Frequency Modulation (5- 2000 kHz)
​High Peak Power (<10 kW)
​Excellent Beam Quality (M2 ​< 1.5)
​Stable Output and Reliability ( Average Power Stability <5%)



Applied Materials:
Metal(Fe/Cu/Al/Mg/Zn)
Rare Alloy(Au/Ag/Ti)
Surface treatment (Anodized/ Electrophoretic deposition /Coating)
ABS(Distributor housing/Commodity)
Epoxy(Electronic packing/ Insulating layer)



Applied Industries:
Automotive Components
Hardware Tools
Electronic Components
Integrated Circuit
Electrical Appliances
Precision Machinery
Medical Equipment

BRIMO R2+ Pulsed Fiber Laser

Optical Properties:
Output Power 20 (W)
Wavelength  1064 ± 3(nm)
Repetition frequency tunable range  5-2000(kHz)
Adjustable Waveform 3-800 ns Selectable
Max. Peak Power  <10(kW)
Spatial Beam Quality < 1.5
Max. Pulse Energy  0.67
Bean Diameter 7 ± 1
Output Power Tunability  5-100(%)
Output Power Stability  < 5(%)
Polarization State Random
Integrated Guide Light Optional
Power Supply 110/220V, 50/60Hz,Single Phase





Introduction
Features and Advantages:
MOPA
Pulse Width Modulation (3 ns- 800 ns)
Wide Frequency Modulation (5- 2000 kHz)
​High Peak Power (<10 kW)
​Excellent Beam Quality (M2 ​< 1.5)
​Stable Output and Reliability ( Average Power Stability <5%)



Applied Materials:
Metal(Fe/Cu/Al/Mg/Zn)
Rare Alloy(Au/Ag/Ti)
Surface treatment (Anodized/ Electrophoretic deposition /Coating)
ABS(Distributor housing/Commodity)
Epoxy(Electronic packing/ Insulating layer)



Applied Industries:
Automotive Components
Hardware Tools
Electronic Components
Integrated Circuit
Electrical Appliances
Precision Machinery
Medical Equipment
Specifications

BRIMO R2+ Pulsed Fiber Laser

Optical Properties:
Output Power 20 (W)
Wavelength  1064 ± 3(nm)
Repetition frequency tunable range  5-2000(kHz)
Adjustable Waveform 3-800 ns Selectable
Max. Peak Power  <10(kW)
Spatial Beam Quality < 1.5
Max. Pulse Energy  0.67
Bean Diameter 7 ± 1
Output Power Tunability  5-100(%)
Output Power Stability  < 5(%)
Polarization State Random
Integrated Guide Light Optional
Power Supply 110/220V, 50/60Hz,Single Phase



Back to the top
Certification: ISO 9001:2015/ISO 14001:2015/SGS CE
